High Quality HSS Straight Shank Twist Drill Jobber Length

Inquire Add to Basket

  • 1,000 Pieces

  • Shanghai, China

  • 50, 000, 000PCS/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • 1/64"-5/8", 1#-60#, A-Z, 1-13MM

  • INGLAU

  • as Requested

  • Metal drill bits HSS-G, metric

  • Crafted by Inglau Tools

  • 82075010

  • Customized

  • BIN, AISI

  • Jobber Length

  • Twist Drill Bit

  • High Speed Steel

  • Well Drilling, Metal Drilling, Masonry Drilling



HSS Straight Shank Twist Drill -JOBBER LENGTH

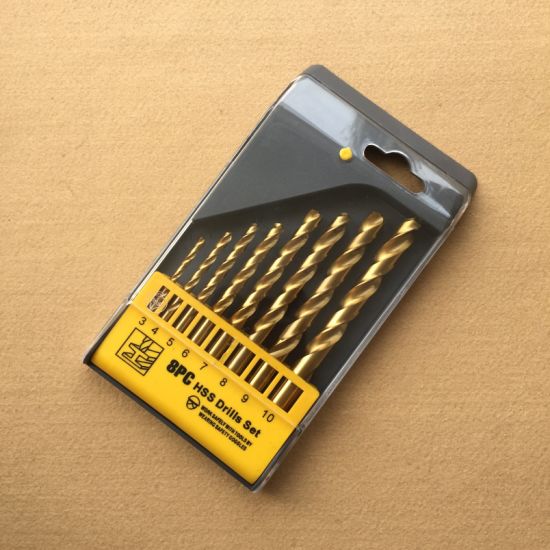

High Quality HSS Straight Shank Twist Drill Jobber Length

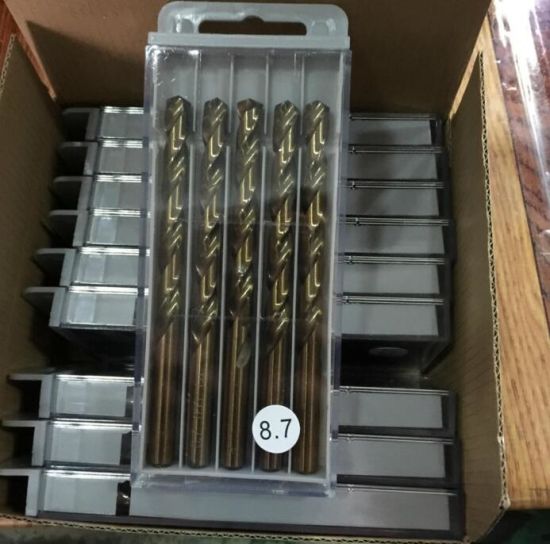

High Quality HSS Straight Shank Twist Drill Jobber Length High Quality HSS Straight Shank Twist Drill Jobber Length
Size Decimal Flute Length Overall Length Size Decimal Flute Length Overall Length Size Decimal Flute Length Overall Length
Equivalent L1 L2 Equivalent L1 L2 Equivalent L1 L2
1/16 0.0625 7/8 1-7/8 1# 0.2280 2-5/8 3-7/8 A 0.2340 2-5/8 3-7/8
5/64 0.0781 1 2 2# 0.2210 2-5/8 3-7/8 B 0.2380 2-3/4 4
3/32 0.0938 1-1/4 2-1/4 3# 0.2130 2-1/2 3-3/4 C 0.2420 2-3/4 4
7/64 0.1094 1-1/2 2-5/8 4# 0.2090 2-1/2 3-3/4 D 0.2460 2-3/4 4
1/8 0.1250 1-5/8 2-3/4 5# 0.2055 2-1/2 3-3/4 E 0.2500 2-3/4 4
9/64 0.1406 1-3/4 2-7/8 6# 0.2040 2-1/2 3-3/4 F 0.2570 2-7/8 4-1/8
5/32 0.2188 2 3-1/8 7# 0.2010 2-7/16 3-5/8 G 0.2610 2-7/8 4-1/8
11/64 0.1719 2-1/8 3-1/4 8# 0.1990 2-7/16 3-5/8 H 0.2660 2-7/8 4-1/8
3/16 0.1875 2-5/16 3-1/2 9# 0.1960 2-7/16 3-5/8 I 0.2720 2-7/8 4-1/8
13/64 0.2031 2-7/16 3-5/8 10# 0.1935 2-7/16 3-5/8 J 0.2770 2-7/8 4-1/8
7/32 0.2188 2-1/2 3-3/4 11# 0.1910 2-5/16 3-1/2 K 0.2810 2-15/16 4-1/4
15/64 0.2344 2-5/8 3-3/7 12# 0.1890 2-5/16 3-1/2 L 0.2900 2-15/16 4-1/4
1/4 0.2500 2-3/4 4 13# 0.1850 2-5/16 3-1/2 M 0.2950 3-1/16 4-3/8
17/64 0.2656 2-7/8 4-1/8 14# 0.1820 2-3/16 3-3/8 N 0.3020 3-1/16 4-3/8
9/32 0.2812 2-15/16 4-1/4 15# 0.1800 2-3/16 3-3/8 O 0.3160 3-3/16 4-1/2
19/64 0.2969 3-1/16 4-3/8 16# 0.1770 2-3/16 3-3/8 P 0.3230 3-5/16 4-5/8
5/16 0.3125 3-3/16 4-1/2 17# 0.1730 2-3/16 3-3/8 Q 0.3320 3-7/16 4-3/4
21/64 0.3281 3-5/16 4-3/4 18# 0.1695 2-1/8 3-1/4 R 0.3390 3-7/16 4-3/4
11/32 0.3438 3-7/16 4-5/8 19# 0.1660 2-1/8 3-1/4 S 0.3480 3-1/2 4-7/8
23/64 0.3594 3-1/2 4-7/8 20# 0.1610 2-1/8 3-1/4 T 0.3580 3-1/2 4-7/8
3/8 0.3750 3-5/8 5 21# 0.1590 2-1/8 3-1/4 U 0.3680 3-5/8 5
25/64 0.3906 3-3/4 5-1/8 22# 0.1570 2 3-1/8 V 0.3770 3-5/8 5
13/32 0.4062 3-7/8 5-1/4 23# 0.1540 2 3-1/8 W 0.3860 3-3/4 5-1/8
27/64 0.4219 3-15/16 5-3/8 24# 0.1520 2 3-1/8 X 0.3970 3-3/4 5-1/8
7/16 0.4375 4-1/16 5-1/2 25# 0.1495 1-7/8 3 Y 0.4040 3-7/8 5-1/4
29/64 0.4531 4-3/16 5-5/8 26# 0.1470 1-7/8 3 Z 0.4130 3-7/8 5-1/4
15/32 0.4688 4-5/16 5-3/4 27# 0.1440 1-7/8 3
31/64 0.4844 4-3/8 5-7/8 28# 0.1405 1-3/4 2-7/8
1/2 0.5000 4-1/2 6 29# 0.1360 1-3/4 2-7/8
30# 0.1285 1-5/8 2-3/4
Size Decimal Flute Length Overall Length 31# 0.1200 1-5/8 2-3/4
Equivalent L1 L2 32# 0.1160 1-5/8 2-3/4
1.00mm 0.0394 17 41 33# 0.1130 1-1/2 2-5/8
1.50mm 0.0591 22 48 34# 0.1110 1-1/2 2-5/8
2.00mm 0.0787 25 51 35# 0.1100 1-1/2 2-5/8
2.50mm 0.0984 35 60 36# 0.1065 1-7/16 2-1/2
3.00mm 0.1181 41 70 37# 0.1040 1-7/16 2-1/2
3.30mm 0.1299 44 73 38# 0.1015 1-7/16 2-1/2
3.50mn 0.1378 44 73 39# 0.0995 1-3/8 2-3/8
4.00mm 0.1575 54 83 40# 0.0980 1-3/8 2-3/8
4.20mm 0.1654 54 83 41# 0.0960 1-3/8 2-3/8
4.50mm 0.1772 56 86 42# 0.0935 1-1/4 2-1/4
5.00mm 0.1969 62 92 43# 0.0890 1-1/4 2-1/4
5.50mm 0.2165 64 95 44# 0.0860 1-1/8 2-1/8
6.00mm 0.2362 70 102 45# 0.0820 1-1/8 2-1/8
6.50mm 0.2559 73 105 46# 0.0810 1-1/8 2-1/8
7.00mm 0.2756 73 105 47# 0.0785 1 2
7.50mm 0.2953 78 111 48# 0.0760 1 2
8.00mm 0.315 81 114 49# 0.0730 1 2
8.50mm 0.3346 87 121 50# 0.0700 1 2
9.00mm 0.3543 89 124 51# 0.0670 1 2
9.50mm 0.374 92 127 52# 0.0635 7/8 1-7/8
10.00mm 0.3937 95 130 53# 0.0595 7/8 1-7/8
10.50mm 0.4134 98 133 54# 0.0550 7/8 1-7/8
11.00mm 0.4331 103 140 55# 0.0520 7/8 1-7/8
11.50mm 0.4528 106 143 56# 0.0465 3/4 1-3/4
12.00mm 0.4724 111 149 57# 0.0430 3/4 1-3/4
12.50mm 0.4921 114 152 58# 0.0420 11/16 1-5/8
13.00mm 0.5118 114 152 59# 0.0410 11/16 1-5/8
60# 0.0400 11/16 1-5/8
